Les avantages des produits

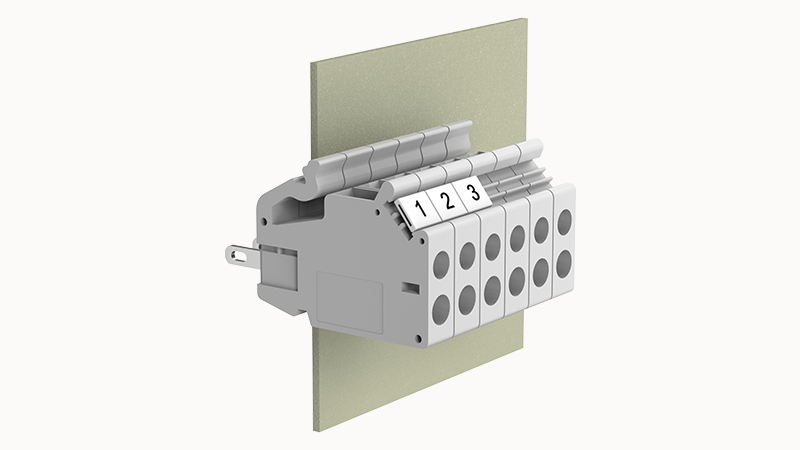

☑ Screw connection technology,safe and reliable☑ Through-wall installation, free positioning
- Modèle 3D
- Connection capacity
- Electrical parameters UL
- Electrical parameters IEC
- Item properties
- Material data
- Mechanical tests
- Environmental data
Modèle 3D
Connection capacity
| Conductor cross section solid | 0.2~4mm² |
| Conductor cross section flexible | 0.2~4.0mm² |
| AWG | 30~10AWG |
| Torque | 0.5N.m |
| Strip length | 6mm |
Electrical parameters UL
| Rated voltage (B) | 300V |
| Rated voltage (D) | 300V |
| Rated current (B) | 20A |
| Rated current (D) | 10A |
Electrical parameters IEC
| Rated current | |
| 24A | |
| Rated current(III/2) | 400V |
| Rated surge voltage(III/2) | 2.5KV |
Item properties
| Type of installation | panel |
| Connection method | Screw connection |
| Screwdriver | Slotted screwdriver |
| screw thread | M3 |
| Pitch | 6.1mm |
| Number of potentials | 1 |
| Pluggable or not | no |
| Number of rows | 1 |
Material data
| Environmental items | Compliant with REACH/RoHS |
| Contact material | copper |
| Contact point metal surface | tin-plated |
| Insulation Materials | PA66 |
| Insulating material group | Ⅰ |
| Flammability rating | UL94V-0 |
Mechanical tests
| Test Specification | IEC60947/UL1059 |
Environmental data
| Ambient temperature (operation) | -40℃~105℃ |
Accessories
| Coding strip | / |
| Bridge | / |
| Marking strip | / |
| Others | / |
Tool
| Operating tool | / |
| Screwdriver | / |
VDE parameters
| Overvoltage category/Degree of pollution | III/3 | III/2 | II/2 |
| Rated voltage | / | 400V | / |
| Rated current | / | 24A | / |
| Cross section | / | 0.2~4 | / |
UL parameters
| Use group | B | C | D |
| Rated voltage | 300V | / | 300V |
| Rated current | 20A | / | 10A |
| AWG | 30~10 | / | 30~10 |
| Numéro de la commande | 10090000001 |
| Unité d'emballage | 120 |
| Quantité minimale de commande | 30 |
| Le poid de produit (sans emballage) | 4.7 |
| 3D | |
|---|---|
| DG4-01P-1Y-00A(H).stp | Télécharger |
| CAD Data | |
|---|---|
| DG4-01P-11-00A(H)-T0.dxf | Télécharger |
| Data | |
|---|---|
| DG4-01P-11-00A(H)-T0-l.pdf | Télécharger |
